Product Introduction

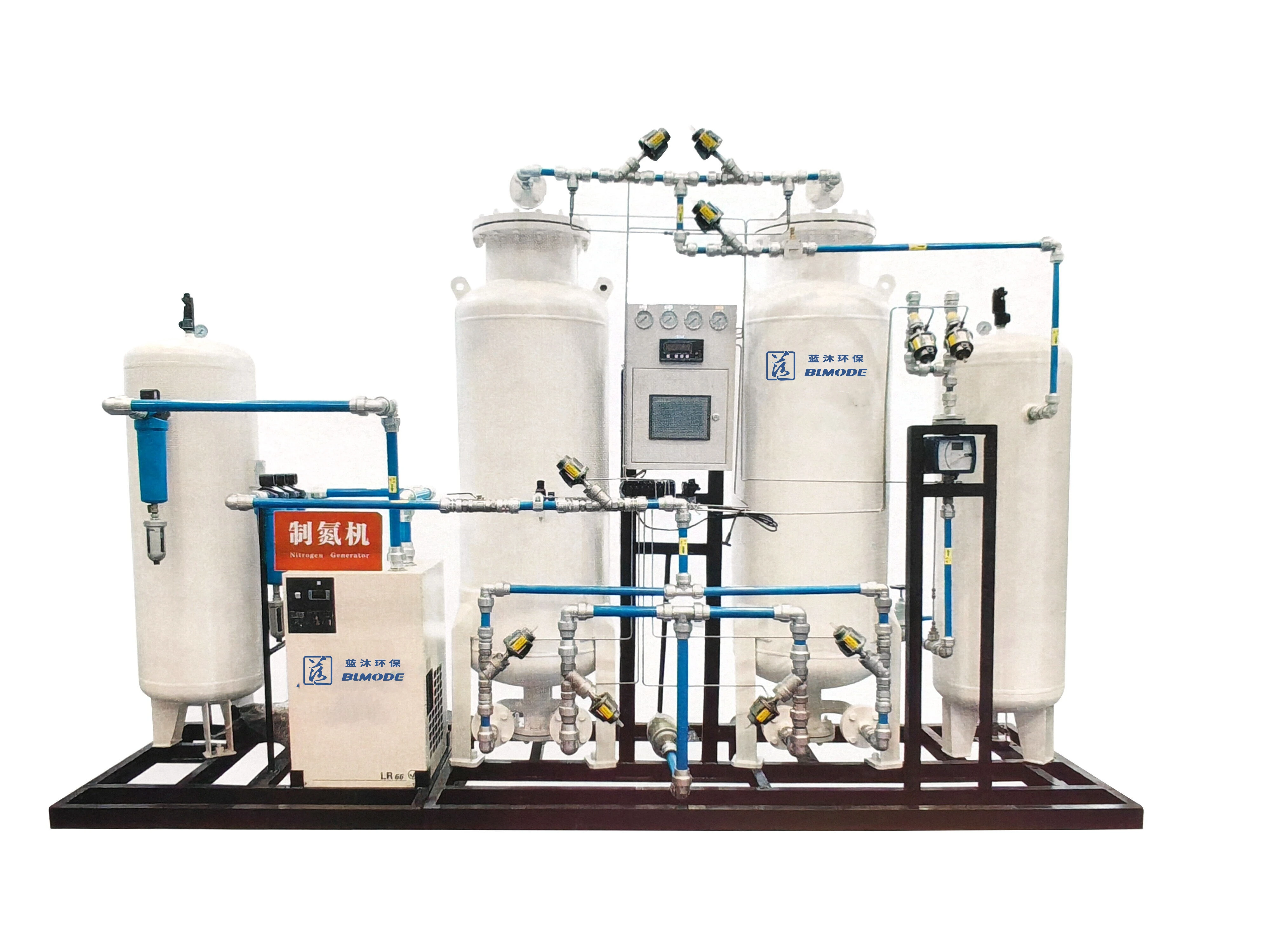

Pressure swing adsorption (PSA) nitrogen generator is an automated device that uses carbon molecular sieve as adsorbent and absorbs oxygen from the air through the principle of pressure reduction and desorption, thereby separating nitrogen.

Technical indicators

Nitrogen output 3~5000Nm3/h (under standard conditions)

Nitrogen purity 90%~99.9995% (national standard non-oxygen content)

Nitrogen pressure 0.1~0.8Mpa (gauge pressure, stable and adjustable)

Nitrogen dew point -40°C~-70°C (normal pressure dew point)

High quality carbon molecular sieve

High density, compact spring loaded, top/bottom balanced, protected by dedicated pressure sensor.

Features

Providing the greatest business value

Molecular screening, filling and compaction are done in a professional way and in a professional environment, making the machine more efficient.

The design of the process and structure is optimized, so that the system can realize its maximum potential.

Higher reliability

A special valve that can switch frequently for one million times without any fault is used to ensure the stable operation of the system.

The system design is more reasonable, and the equipment is safer and more reliable.

More convenient to use

It can automatically record nitrogen values, making it easy to find the system's working status at any working time. The system runs fully automatically and the whole process can be unattended.

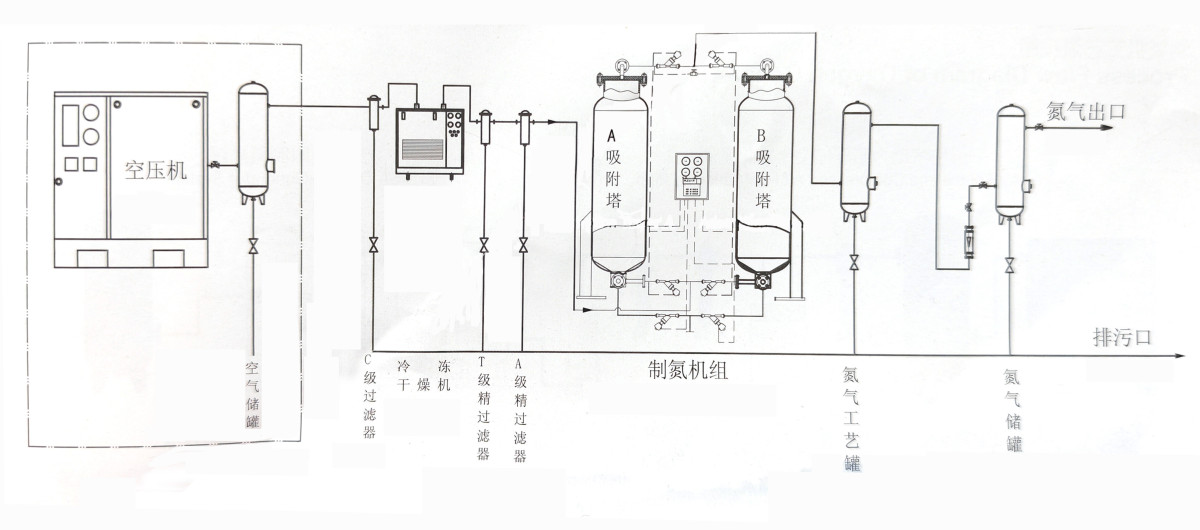

Nitrogen Generator Flow Chart

Common specifications and models of equipment
